MODEL / 06-LNE DC Conversion and PV MPPT

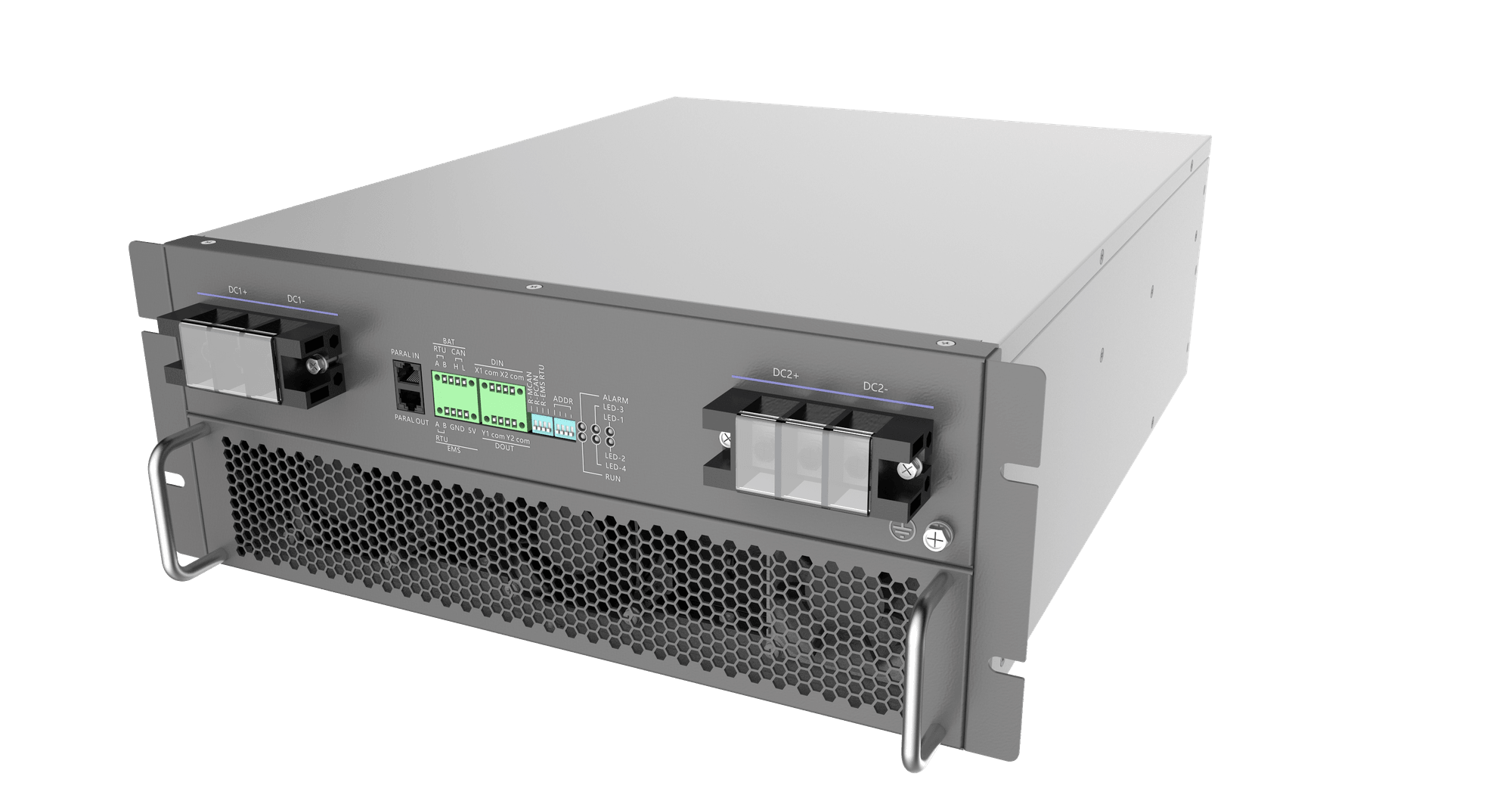

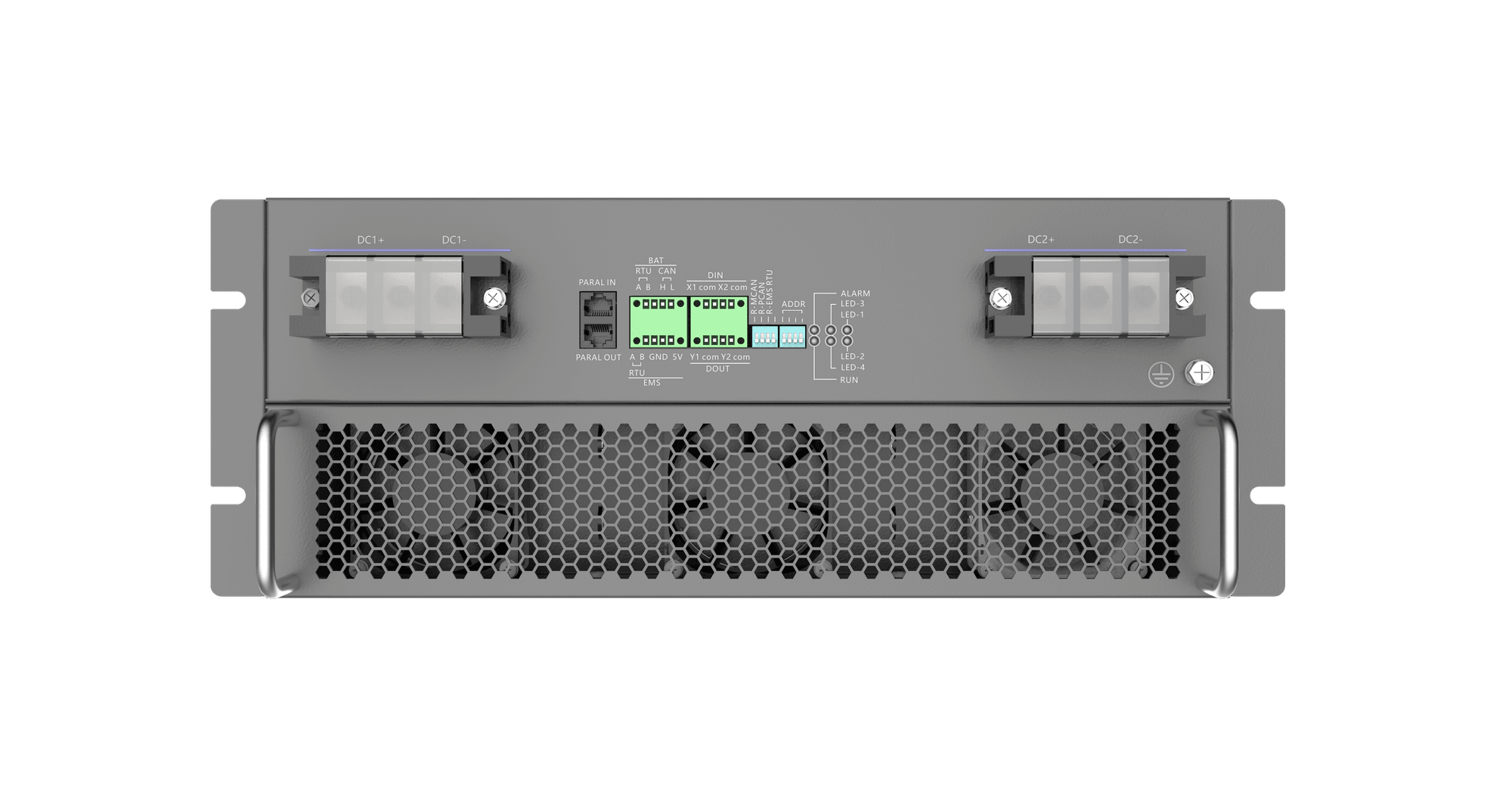

LNE120HCPV Series DC-DC Module

A high-efficiency DC-DC module for DC-coupled microgrids, with wide-voltage input, isolated airflow, multiple PV inputs and up to 99.3% efficiency.

Model features

01Wide 200-900 V PV input

02One, two or four PV inputs

03Up to 15 units in parallel

04Up to 99.3% efficiency

05Heterogeneous battery SOC balancing

06Multiple electrical protections

Rated power60 / 120 / 105 kW

PV voltage200-900 V

High-voltage bus500-950 V

MPPT range200-850 V

Maximum efficiency99.3%

Parallel unitsUp to 15

Dimensions440 x 560 x 183 mm

Weight29 kg
