Model features
01Integrated AC and DC distribution
02PV, battery, grid and generator connection
03Protection and metering devices
04Modular maintainable design
05Integrated or standalone configuration
06Custom engineering for each project
Key specifications
Rated powerProject configured, typically 125-500 kVA
DC voltagePV 200-950 V; battery 680-900 V
AC voltage400 / 230 V, three-phase four-wire
Ingress protectionIP20-IP54, enclosure dependent
InstallationFloor-standing
DimensionsIntegrated system 1200 x 2000 x 1000 mm; standalone cabinet customized
ConfigurationStandalone cabinets are engineered to project requirements

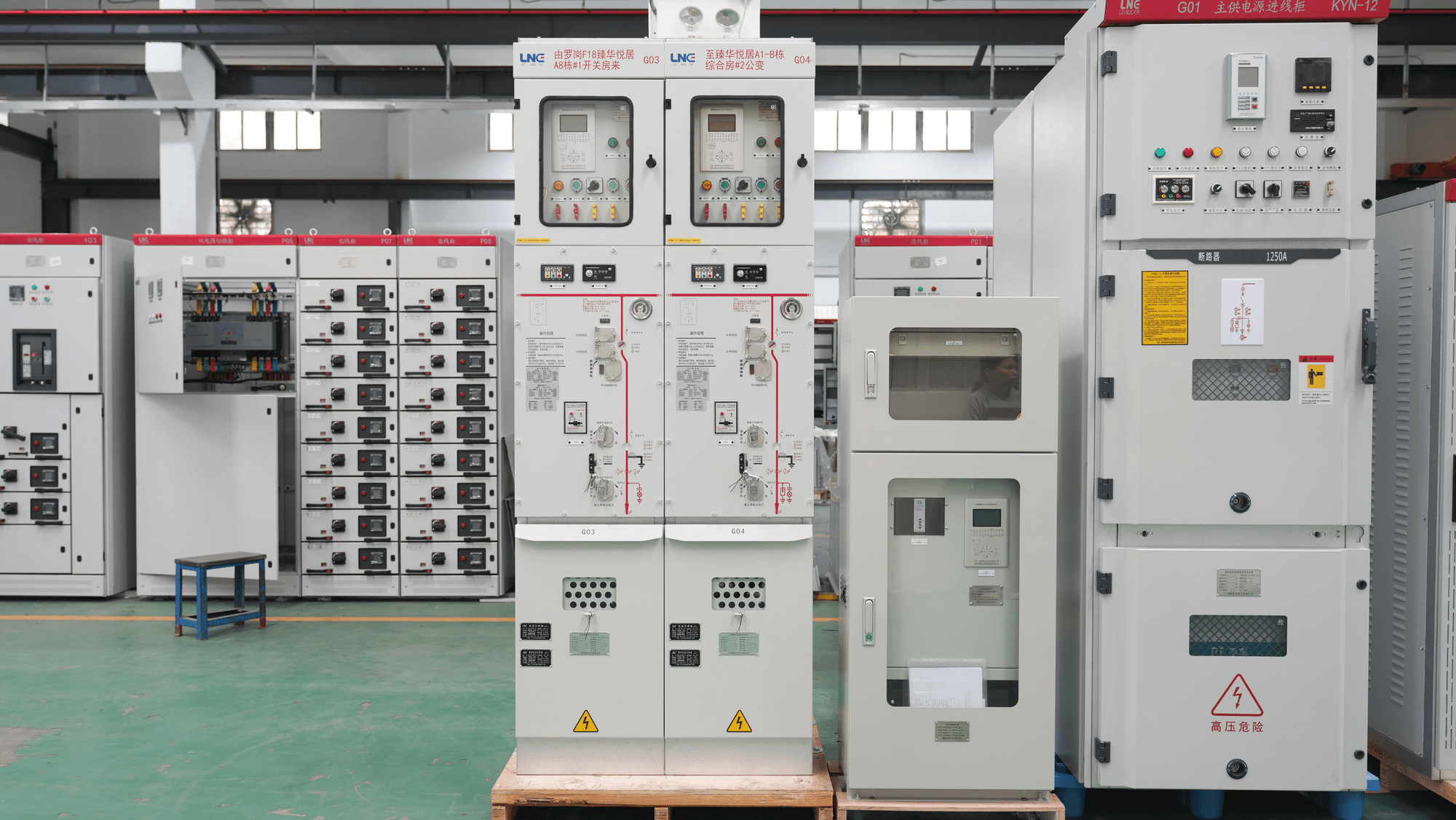

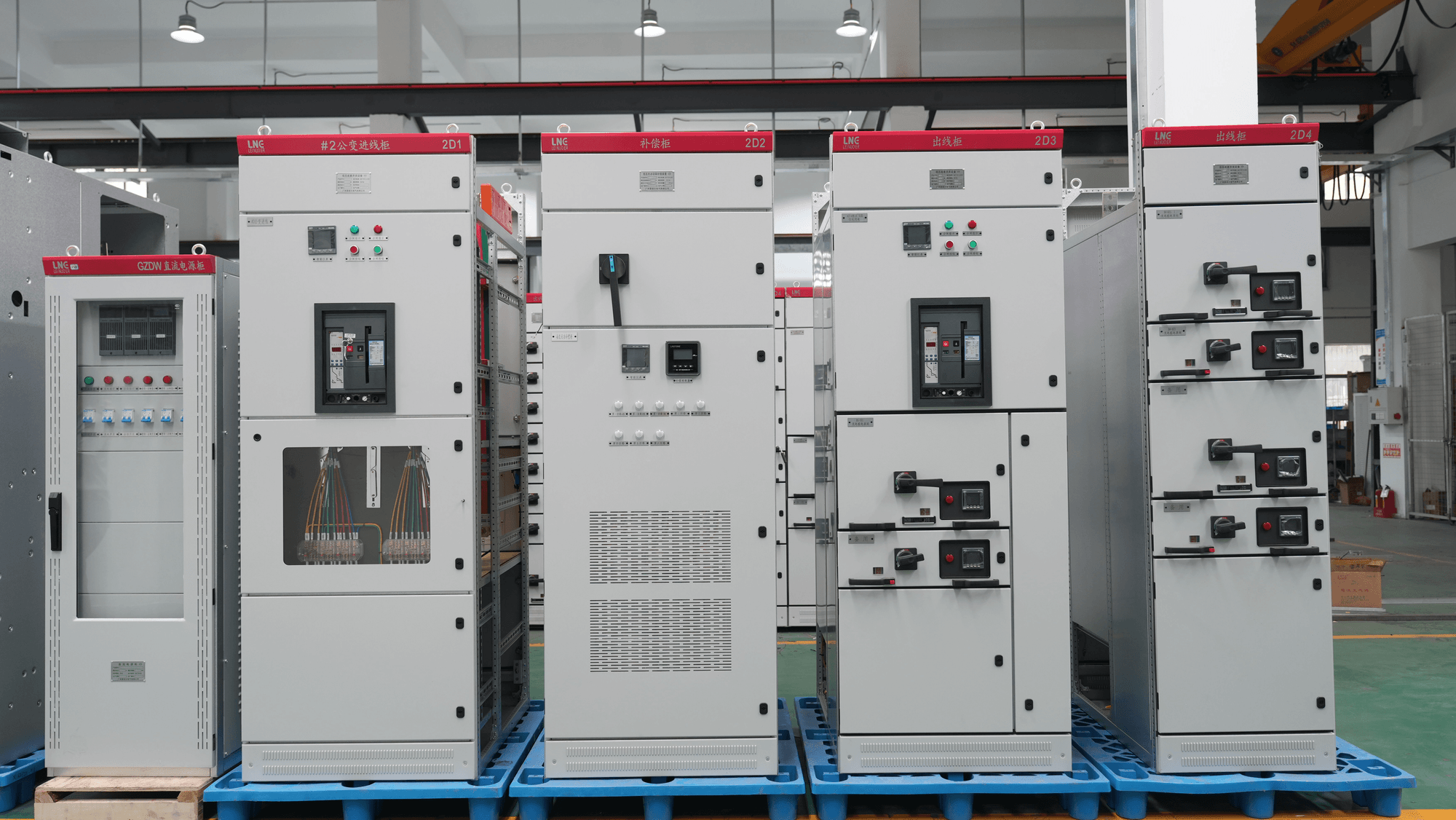

Product gallery
