Model features
01Isolated airflow design
02150% overload capability for 100 ms
03Built-in STS with transfer below 10 ms
04Diesel hybrid mode
05Multi-unit parallel operation
06Independent three-phase grid control
07Dual-MPPT direct PV input
Key specifications
Rated power30 / 25 / 15 kVA
Battery voltage320-820 V for 30/25 kVA; 200-820 V for 15 kVA
Maximum efficiency97.8%
PV inputTwo MPPT inputs, up to 15 kW + 15 kW
Ingress protectionIP20; core control section IP5X
Dimensions440 x 560 x 183 mm
Weight35 kg

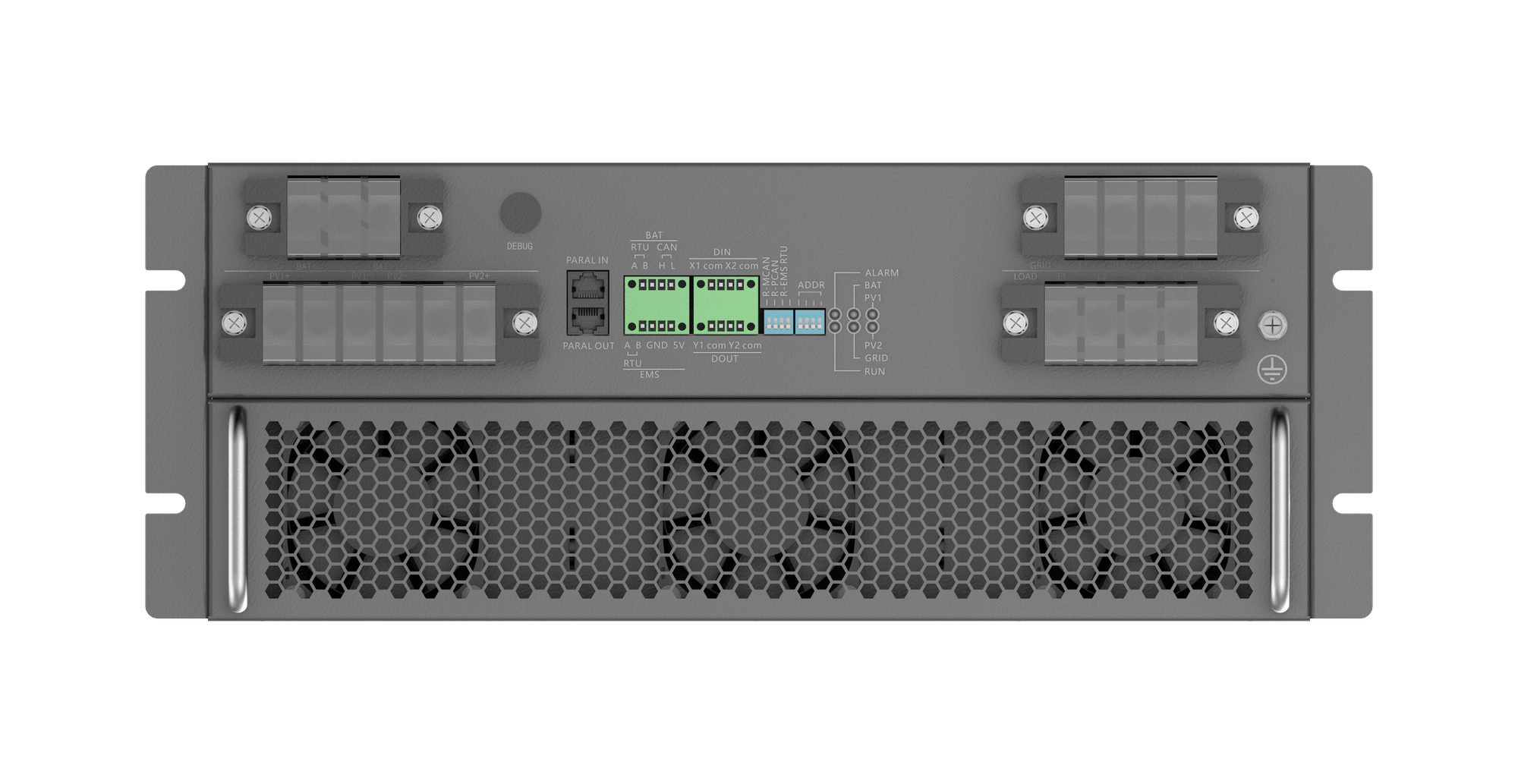

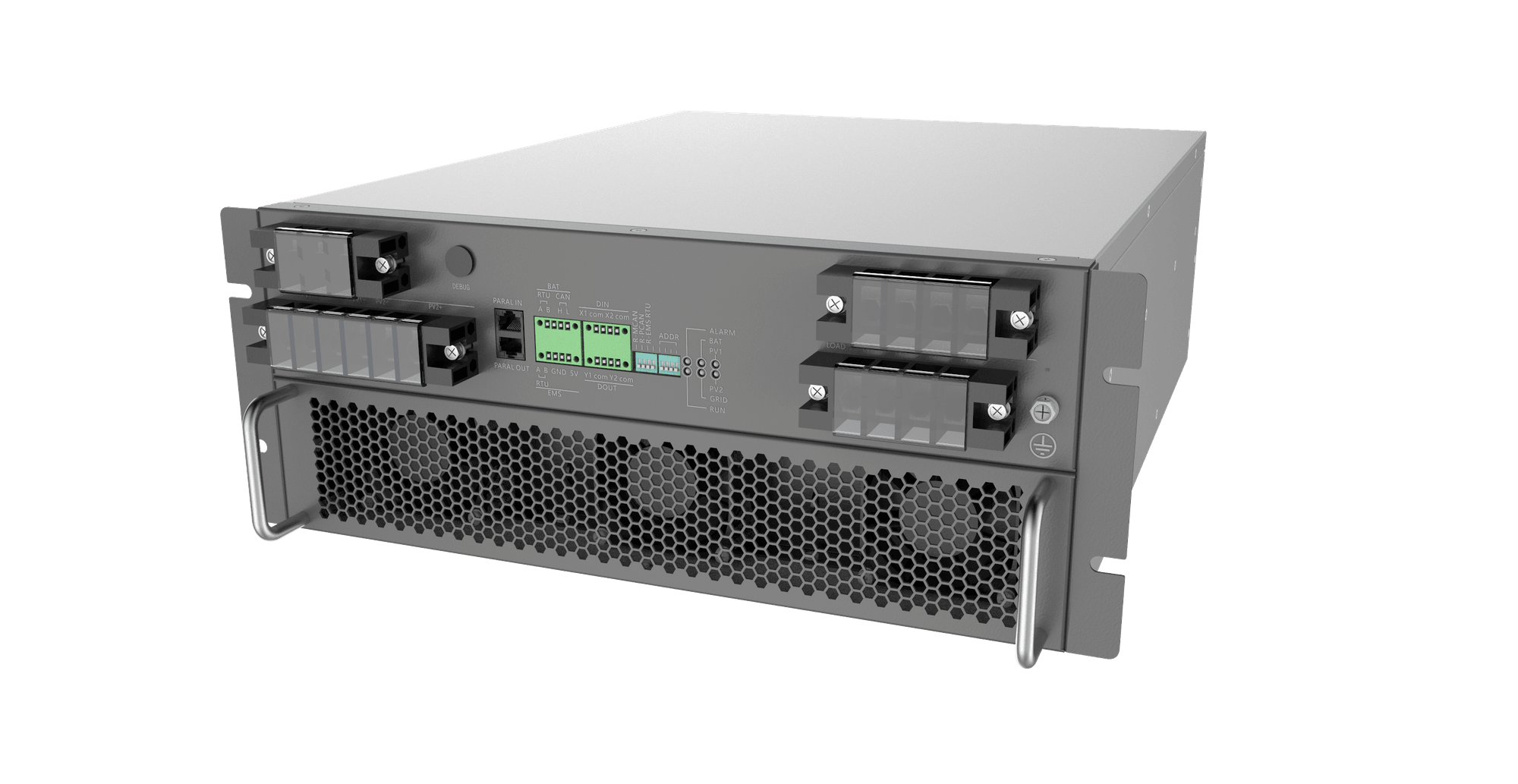

Product gallery
