Model features
01Wide-voltage, high-current DC design
02Compatible with 280 Ah and 314 Ah cells
03150% overload capability for 100 ms
04Built-in STS with transfer below 10 ms
05Diesel hybrid mode
06Multi-unit parallel operation
07Dual-MPPT direct PV input
Key specifications
Rated power60 / 50 / 40 / 30 kVA
Battery voltage210-850 V to 420-850 V, model dependent
Maximum efficiency98.2%
PV inputTwo MPPT inputs, up to 38.4 kW + 38.4 kW
Ingress protectionIP20; core control section IP5X
Dimensions440 x 670 x 200 mm
WeightBelow 50 kg

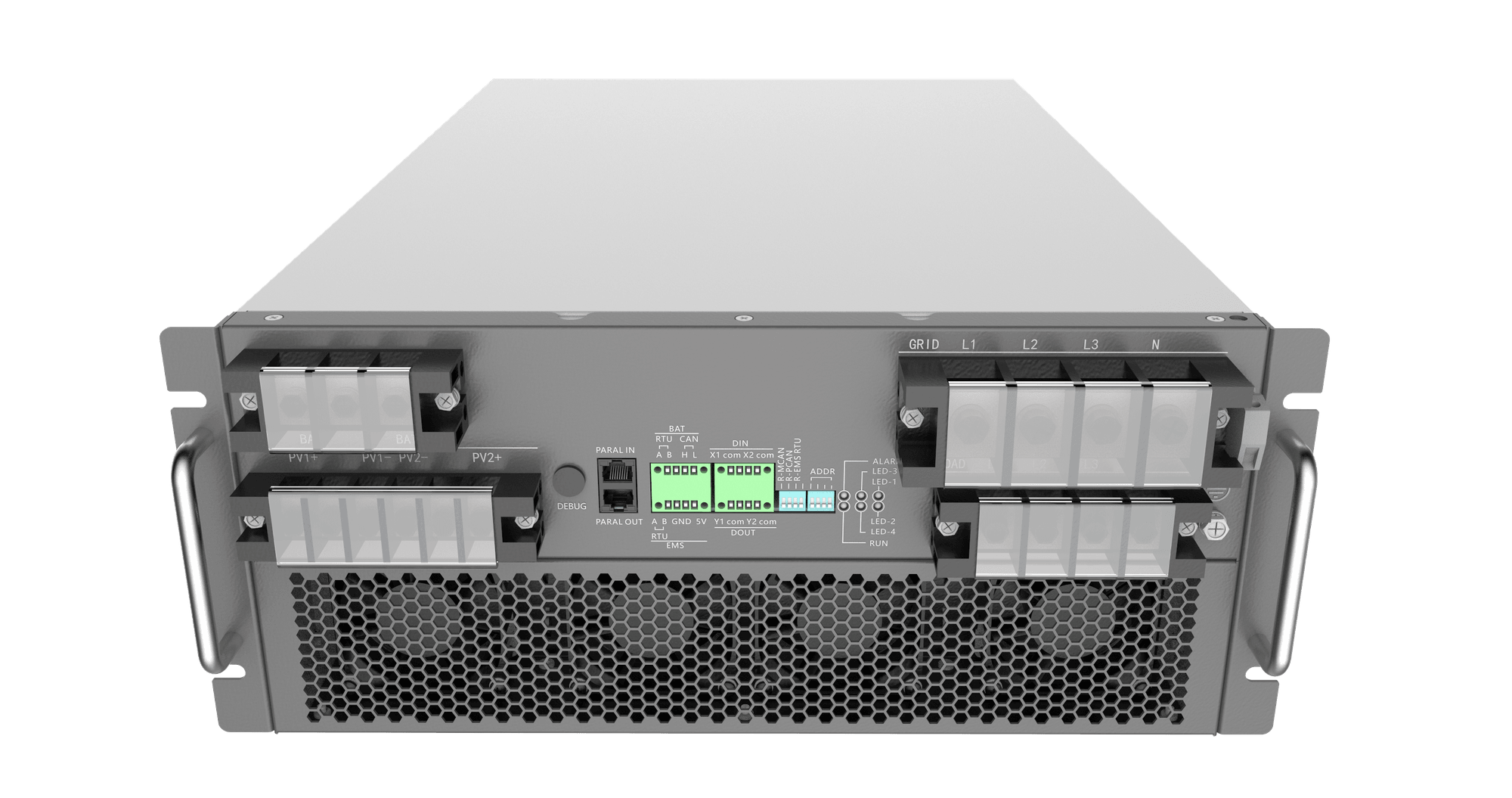

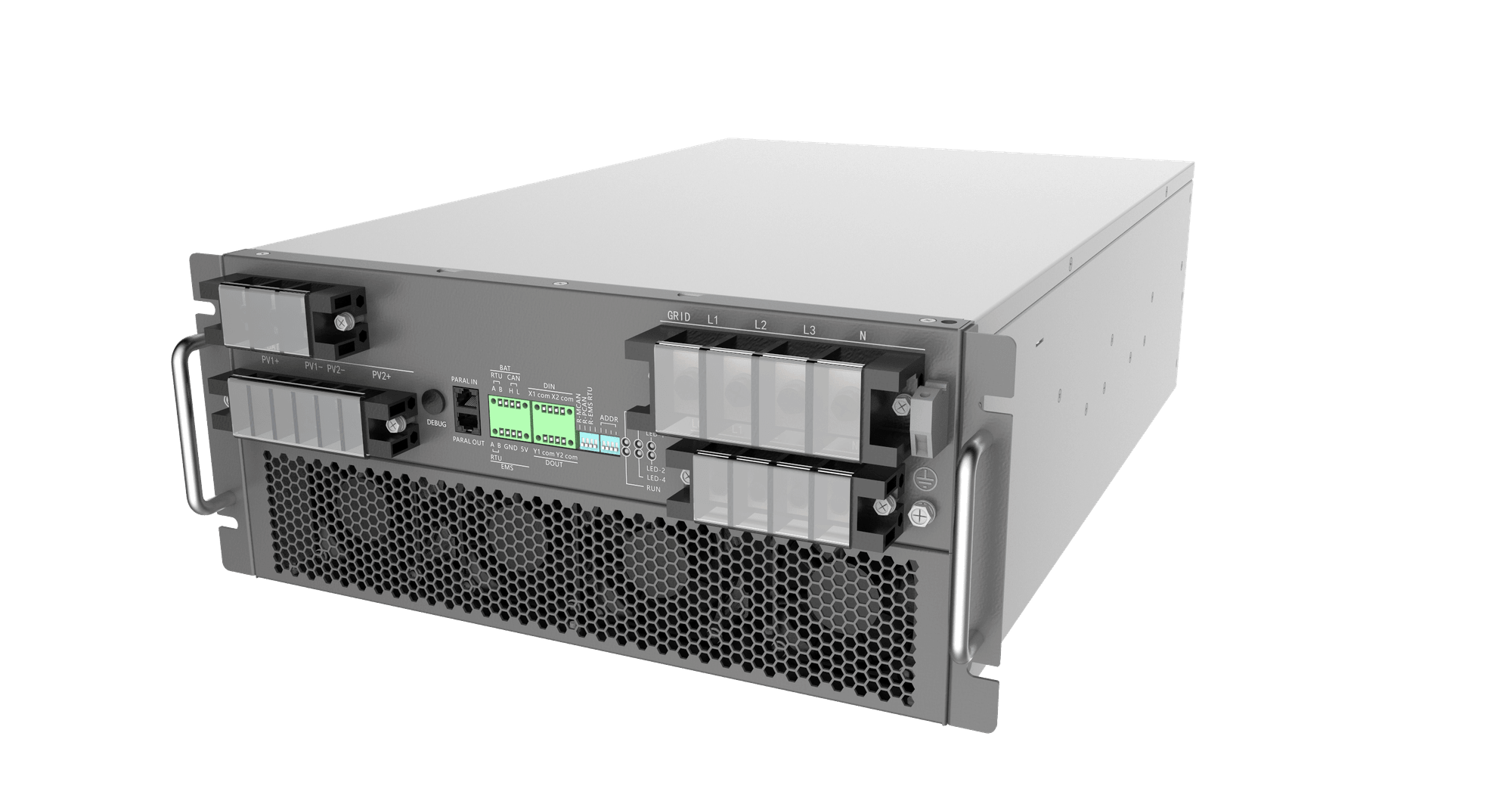

Product gallery
