Model features
01Integrated LocalEMS
02Transfer below 20 ms
03Grid- and load-side voltage/current sensing
04Harmonic monitoring
05Overtemperature, overcurrent, overvoltage and ground-fault protection
06RS485, Ethernet, CAN and optional 4G connectivity
Key specifications
Rated power200 / 400 / 600 kW
Rated current330 / 660 / 1000 A
Rated voltage400 / 230 V, three-phase four-wire
Transfer timeBelow 20 ms
Ingress protectionIP20; core control section IP5X
Dimensions440 x 420 x 360 mm or 650 x 420 x 360 mm
Weight35 kg or 63 kg

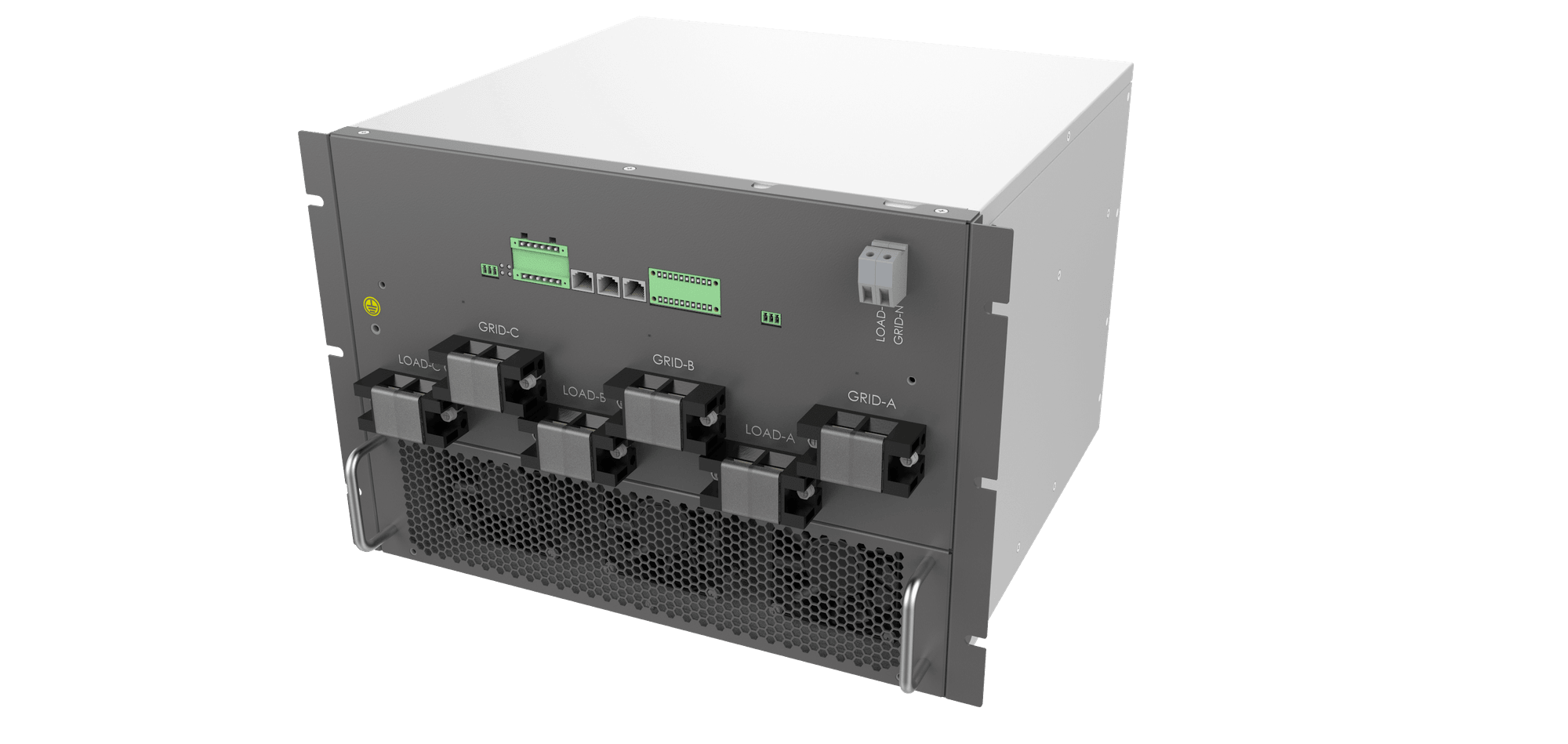

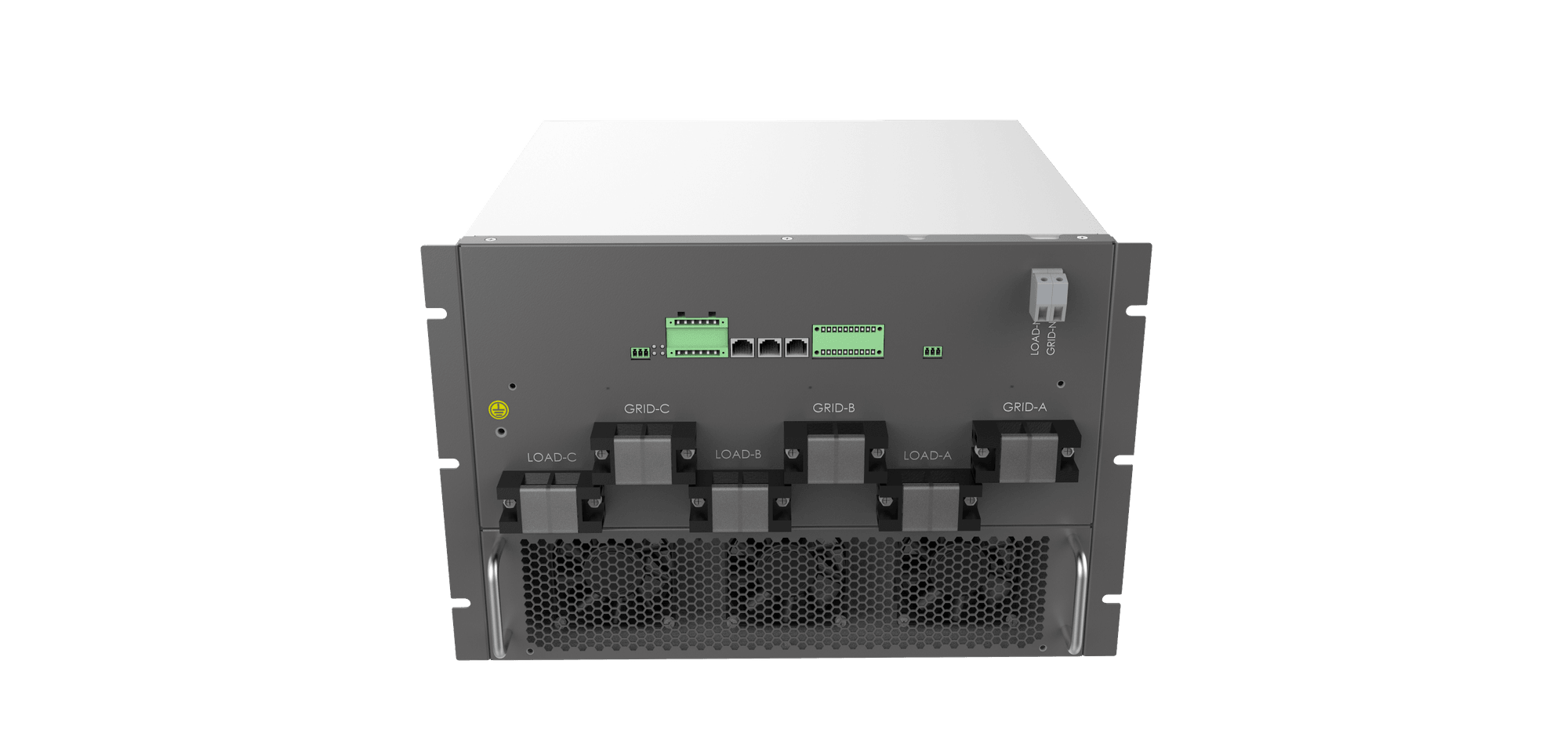

Product gallery
